Getting started with NICER data

Getting started with NICER data#

Learning Goals#

By the end of this tutorial, you will be able to:

  • Download NICER observation data files for a given ObsID.

  • Process and clean raw NICER data into “level 2” (science ready) products.

  • Extract a spectrum, fit a model to it using PyXspec, and plot the results.

  • Extract a light curve, account for good-time-intervals, and plot it.

Introduction#

In this tutorial, we will go through the steps of analyzing a NICER observation (with ObsID 4020180445) of ‘PSR B0833-45’ using heasoftpy.

Inputs#

  • The NICER ObsID, 4142010107, of the data we will process (an observation of a pulsar, PSR B0833-45).

Outputs#

  • Processed NICER “level 2” data files.

  • A source and background spectrum.

  • A source light curve.

  • Fitted spectral model parameters.

  • Visualizations of the spectrum and light curve.

Runtime#

As of 19th January 2026, this notebook takes ~6 m to run to completion on Fornax using the ‘Default Astrophysics’ image and the ‘small’ server with 8GB RAM/ 2 cores.

Imports#

import contextlib
import os
import shutil

import heasoftpy as hsp
import matplotlib.pyplot as plt
import numpy as np
import xspec as xs
from astropy.coordinates import SkyCoord
from astropy.io import fits
from astropy.table import Table
from astroquery.heasarc import Heasarc
from heasoftpy.nicer import nicerl2, nicerl3_lc, nicerl3_spect
from matplotlib.ticker import FuncFormatter
from packaging.version import Version

Global Setup#

Functions#

Constants#

Hide code cell source


# NICER ObsID that we will use for this example.
OBS_ID = "4020180445"
SRC_NAME = "PSR B0833-45"

# Controls the verbosity of all HEASoftPy tasks
TASK_CHATTER = 3

Configuration#

Hide code cell source


# ------------- Configure global package settings --------------
# Raise Python exceptions if a heasoftpy task fails
# TODO Remove once this becomes a default in heasoftpy
hsp.Config.allow_failure = False
# --------------------------------------------------------------

# -------------- Set paths and create directories --------------
# Set up the path of the directory into which we will download NICER data
if os.path.exists("../../../_data"):
    ROOT_DATA_DIR = os.path.join(os.path.abspath("../../../_data"), "NICER", "")
else:
    ROOT_DATA_DIR = "NICER/"

# Whatever the data directory is, make sure it is absolute.
ROOT_DATA_DIR = os.path.abspath(ROOT_DATA_DIR)

# Make sure the download directory exists.
os.makedirs(ROOT_DATA_DIR, exist_ok=True)

# Setup path and directory into which we save output files from this example.
OUT_PATH = os.path.abspath("NICER_output")
os.makedirs(OUT_PATH, exist_ok=True)
# --------------------------------------------------------------

# -------- Get geomagnetic data ---------
# This ensures that geomagnetic data required for NICER analyses are downloaded
GEOMAG_PATH = os.path.join(ROOT_DATA_DIR, "geomag")
os.makedirs(GEOMAG_PATH, exist_ok=True)
out = hsp.nigeodown(outdir=GEOMAG_PATH)
# ---------------------------------------

1. Downloading the NICER data files for 4020180445#

We’ve already decided on the NICER observation we’re going to use for this example - as such we don’t need an explorative stage where we use the name of our target, and its coordinates, to find an appropriate observation.

What we do need to know is where the data are stored, and to retrieve a link that we can use to download them - we can achieve this using the NICER summary table of observations, accessed using astroquery.

Identifying NICER’s observation summary (master) table#

The name of the observation summary table for NICER can be identified using Heasarc, imported from Astroquery. This command searches for tables with a ‘nicer’ keyword, and then the master=True argument ensures that only the observation summary table is returned:

catalog_name = Heasarc.list_catalogs(keywords="nicer", master=True)["name"][0]
catalog_name

np.str_('nicermastr')

Fetching coordinates for the source#

A constant containing the name of our source has already been set up in the ‘Global Setup: Constants’ subsection near the top of this notebook:

SRC_NAME

'PSR B0833-45'

We can pass the source’s name to from_name() method of Astropy’s SkyCoord class to run a name-resolver and retrieve a coordinate:

src_coord = SkyCoord.from_name(SRC_NAME)
src_coord

<SkyCoord (ICRS): (ra, dec) in deg
    (128.83606354, -45.17643181)>

Note

Make sure to verify coordinates fetched from name resolving services. You could also set up a SkyCoord object directly if you already know the coordinates of your source.

Finding NICER observations of the region of interest#

This demonstration is only going to use a single observation, which we have already chosen, and the ObsID of which is stored in a constant defined in the ‘Global Setup: Constants’ subsection near the top of this notebook:

OBS_ID

'4020180445'

We are still going to demonstrate how to use Astroquery to find all NICER observations of the region of interest (containing our source) however.

In the very first part of Section 1 we figured out which HEASARC table contains summary information about all of NICER’s observations, and in the subsection just before this one we retrieved the coordinates of our source.

We can now put those two pieces together, and use the Heasarc object imported from Astroquery to fetch a table of all NICER observations within a 15\(^\prime\) radius of our source.

That search radius is the default for the NICER master table. You can determine the default search radius of any HEASARC master table by running the following (with your table name substituted for catalog_name):

Heasarc.get_default_radius(catalog_name)
\[15\mathrm{{}^{\prime}}\]
nicer_obs = Heasarc.query_region(src_coord, catalog_name)
nicer_obs
Table length=666
nameradectimeobsidexposureprocessing_statusprocessing_datepublic_dateobs_type__row
degdegdsdd
objectfloat64float64float64objectfloat64objectfloat64int32objectobject
PSR_B0833-45128.84470-45.1849460698.3423617020180451412.00000VALIDATED60710.277260712NOR14170
PSR_B0833-45128.84140-45.1822258077.7062501020180135190.00000VALIDATED58182.352958181NOR14171
PSR_B0833-45128.83710-45.1820060618.02592670201804370.00000VALIDATED60629.676960632NOR14172
PSR_B0833-45128.84060-45.1818760788.17071880201804070.00000VALIDATED60799.099760802NOR14173
PSR_B0833-45128.84420-45.1817858610.253009202018031934.00000VALIDATED58613.642558624NOR14174
PSR_B0833-45128.83860-45.1816660253.67843760201804290.00000VALIDATED60264.945260267NOR14175
PSR_B0833-45128.83700-45.1815159693.0493065020180407557.00000VALIDATED59704.715159707NOR14176
PSR_B0833-45128.83640-45.1813860615.06088070201804340.00000VALIDATED60625.944560629NOR14177
PSR_B0833-45128.83700-45.1813460616.99467670201804360.00000VALIDATED60627.886460631NOR14178
.................................
PSR_B0833-45128.83850-45.1704359788.82121550201804321238.00000VALIDATED59794.488659802NOR14827
PSR_B0833-45128.83050-45.1703859212.0756943020180462423.00000VALIDATED59216.667359226NOR14828
PSR_B0833-45128.83890-45.1700258123.31405110201801581523.00000VALIDATED58182.389658181NOR14829
PSR_B0833-45128.84100-45.1697859793.4659725020180435121.00000VALIDATED59806.871359807NOR14830
PSR_B0833-45128.83970-45.1696458049.1074071020180128543.00000VALIDATED58182.339858181NOR14831
PSR_B0833-45128.84030-45.1693759938.27453750201804621022.00000VALIDATED59947.910159952NOR14832
PSR_B0833-45128.83660-45.1692758493.39282410201803010.00000VALIDATED58499.674758507NOR14833
PSR_B0833-45128.83990-45.1692658336.0849541020180239593.64387VALIDATED58340.654758350NOR14834
PSR_B0833-45128.79420-45.1646357925.06204900201801010.00000PROCESSED58180.188188068NOR14835

Hint

You could also specify your own search radius by using query_region’s radius argument and passing an Astropy distance quantity.

Now we can very easily filter the nicer_obs table to select the one ObsID we’re interested in:

rel_nicer_obs = nicer_obs[nicer_obs["obsid"] == OBS_ID]
rel_nicer_obs
Table length=1
nameradectimeobsidexposureprocessing_statusprocessing_datepublic_dateobs_type__row
degdegdsdd
objectfloat64float64float64objectfloat64objectfloat64int32objectobject
PSR_B0833-45128.83640-45.1766059475.99746540201804458950.00000VALIDATED59487.926759490NOR14413

Constructing an ADQL query [advanced alternative]#

Alternatively, if we didn’t want to use the query_region method, we could construct a simple astronomical data query language (ADQL) query to find the row of the observation summary table that corresponds to our chosen ObsID. This retrieves every column of the row whose ObsID matches the one we’re looking for:

query = (
    "SELECT * "
    "from {c} as cat "
    "where cat.obsid='{oi}'".format(oi=OBS_ID, c=catalog_name)
)

query

"SELECT * from nicermastr as cat where cat.obsid='4020180445'"

The query is then executed, and the returned value is converted to an AstroPy table (necessary for the next step):

rel_nicer_obs = Heasarc.query_tap(query).to_table()
rel_nicer_obs
Table length=1
__rownameradecliibiitimeend_timeobsidorig_target_idtarget_idtarget_ratarget_decexposuretime_awardedmpu0_exposurempu1_exposurempu2_exposurempu3_exposurempu4_exposurempu5_exposurempu6_exposurenum_fpmprocessing_statusprocessing_datepublic_dateprocessing_versionnum_processedcaldb_versionsoftware_versionprnbabstractsubject_categorycategory_codepi_lnamepi_fnamecycleobs_typetitlecoordinatedfacilitygalactic_nhtarget_classremarks__x_ra_dec__y_ra_dec__z_ra_dec
degdegdegdegdddegdegsssssssssdd1 / cm2
objectobjectfloat64float64float64float64float64float64objectint32int32float64float64float64float64float64float64float64float64float64float64float64int16objectfloat64int32objectint16objectobjectobjectobjectobjectint16objectobjectint16objectobjectint16objectfloat64objectobjectfloat64float64float64
14413PSR_B0833-45128.83640-45.17660263.55224-2.7871759475.99746559476.98098440201804451410-1128.83606-45.176438950.000000.0000012339.0000012339.0000012340.0000012338.0000012338.0000012338.0000012339.0000049VALIDATED59487.926759490l0-master_202109027xti20210707Hea_31Aug2021_V6.29c_NICER_2021-08-31_V008c4020Observations dedicated to the Magnetar science working groupMAGNETAR2GENDREAUKEITH C.4NORMAGNETAR WORKING GROUP--1e+160.549093264741745-0.442056958635063-0.709282899792156

Downloading the NICER observation data files#

Identifying the ‘data link’ that we need to download the data files is now as simple as passing the query return to the locate_data method of Heasarc:

data_links = Heasarc.locate_data(rel_nicer_obs, catalog_name)
data_links
Table length=1
IDaccess_urlsciserverawscontent_lengtherror_message
byte
objectobjectstr39str52int64object
ivo://nasa.heasarc/nicermastr?14413https://heasarc.gsfc.nasa.gov/FTP/nicer/data/obs/2021_09//4020180445//FTP/nicer/data/obs/2021_09/4020180445/s3://nasa-heasarc/nicer/data/obs/2021_09/4020180445/1090157605

This data link can be passed straight into the download_data method of Heasarc, and our observation data files will be downloaded into the directory specified by ROOT_DATA_DIR.

# Heasarc.download_data(data_links, host="sciserver", location=ROOT_DATA_DIR)
Heasarc.download_data(data_links, host="aws", location=ROOT_DATA_DIR)

# We remove the existing cleaned event list directory from the data we just downloaded
shutil.rmtree(os.path.join(ROOT_DATA_DIR, OBS_ID, "xti", "event_cl"))

INFO: Downloading data AWS S3 ... [astroquery.heasarc.core]
INFO: Enabling anonymous cloud data access ... [astroquery.heasarc.core]
INFO: downloading s3://nasa-heasarc/nicer/data/obs/2021_09/4020180445/ [astroquery.heasarc.core]
INFO: downloading s3://nasa-heasarc/nicer/data/obs/2021_09/4020180445/ [astroquery.heasarc.core]

2. Preparing the NICER observation#

HEASoft and HEASoftPy versions#

Warning

There is an issue with some HEASoft releases prior to v6.35.2 where output event list file names all erroneously contain ‘$EVTSUFFIX’, which causes subsequent processing steps to fail. This subsection includes a workaround for this issue.

Both the HEASoft and HEASoftPy package versions can be retrieved from the HEASoftPy module.

The HEASoftPy version:

hsp.__version__

'1.5'

The HEASoft version:

fver_out = hsp.fversion()
fver_out

---------------------
:: Execution Result ::
---------------------
> Return Code: 0
> Output:
26Sep2025_V6.36

> Parameters:
	version   : $( )
	mode      : ql

For versions of HEASoft older than v6.36 we have to manually set an evtsuffix in order to ensure that the output event list filenames are correct. First though, we have to identify which version of HEASoft we’re using by extracting the version string from the fversion output, and setting up a Version object:

fver_out.output[0].split("_")[-1]
HEA_VER = Version(fver_out.output[0].split("_")[-1])
HEA_VER

<Version('6.36')>

We can now check whether HEA_VER is lower than the minimum required version. If the version is too low, we set the evt_suffix variable to _demo, otherwise we set it to the default value:

if HEA_VER < Version("v6.36"):
    evt_suffix = "_demo"
else:
    evt_suffix = "NONE"

Processing and cleaning the raw NICER data#

Next up, we’re going to run the nicerl2 pipeline to process and clean the raw NICER data; this will render it ready for scientific use. NICER pipelines are implemented in HEASoft, and as such we can make use of interfaces built into HEASoftPy to run them in this notebook, rather than in the command line.

This pipeline is designed to produce “level 2” data products and includes steps for standard calibration, screening, and filtering of data. The outputs are an updated filter file and a cleaned event list.

It is worth applying nicerl2 to any observation that you know was last processed with an older calibration!

Note

The filtcolumns argument to nicerl2 will default to the latest version of the standard columns (V6 as of the 20th October 2025). You may also set it manually (as we do here) for backwards compatibility reasons - see the ‘Selecting filter file columns’ section of the nicerl2 help file for more information.

OBS_ID_PATH = os.path.join(ROOT_DATA_DIR, OBS_ID)

# Run the task
out = nicerl2(
    indir=OBS_ID_PATH,
    geomag_path=GEOMAG_PATH,
    filtcolumns="NICERV5",
    evtsuffix=evt_suffix,
    clobber=True,
    noprompt=True,
    chatter=TASK_CHATTER,
)

Warning

NICER level-2 processing now requires up-to-date geomagnetic data (see this for a discussion); we used a HEASoftPy tool (nigeodown) to download the latest geomagnetic data in the ‘Global setup: Configuration’ section near the top of this notebook.

3. Extracting a spectrum from the processed data#

Now that the raw data are processed into “level 2” products and are ready for scientific use, we will use the nicerl3-spect pipeline (part of HEASoft, and available for use through HEASoftPy) to extract a spectrum of our source.

Important

The nicerl3-spect tool is only available in HEASoft v6.31 or later.

For this example, we use the scorpeon model to create a background spectrum. Other background models are implemented in the nicerl3-spect tool, and can be selected using the bkgmodeltype argument (see the ‘background estimation’ section of the nicerl3-spect help file for more information).

The source and background spectra are written to the OUT_PATH directory we set up in the collapsed ‘Global Setup: Configuration’ subsection above.

Note that we set the parameter updatepha to yes, so that the header of the spectral file is modified to point to the matching response and background files.

# The contextlib.chdir context manager is used to temporarily change the working
#  directory to the directory where the output files will be written.
with contextlib.chdir(OUT_PATH):

    # Run the spectral extraction task
    out = nicerl3_spect(
        indir=OBS_ID_PATH,
        phafile="spec.pha",
        rmffile="spec.rmf",
        arffile="spec.arf",
        bkgfile="spec_sc.bgd",
        evtsuffix=evt_suffix,
        grouptype="optmin",
        groupscale=5,
        updatepha="yes",
        bkgformat="file",
        bkgmodeltype="scorpeon",
        clobber=True,
        noprompt=True,
        chatter=TASK_CHATTER,
    )

Note

Note that the - symbol in the pipeline name is replaced by _ (underscore) when calling through HEASoftPy; nicerl3-spect3 becomes nicerl3_spect3.

4. Extracting a light curve from the processed data#

We also might want to see how the intensity of our source changes with time (something that NICER is particularly well suited for).

As such, we use the nicerl3-lc (again only available in HEASoft v6.31 or later) tool to extract a light curve for our source (though this process does not extract an accompanying background light curve).

# Extract light curve
with contextlib.chdir(OUT_PATH):
    # Run the light curve task
    out = nicerl3_lc(
        indir=OBS_ID_PATH,
        timebinsize=10,
        lcfile="lc.fits",
        evtsuffix=evt_suffix,
        clobber=True,
        noprompt=True,
        chatter=TASK_CHATTER,
    )

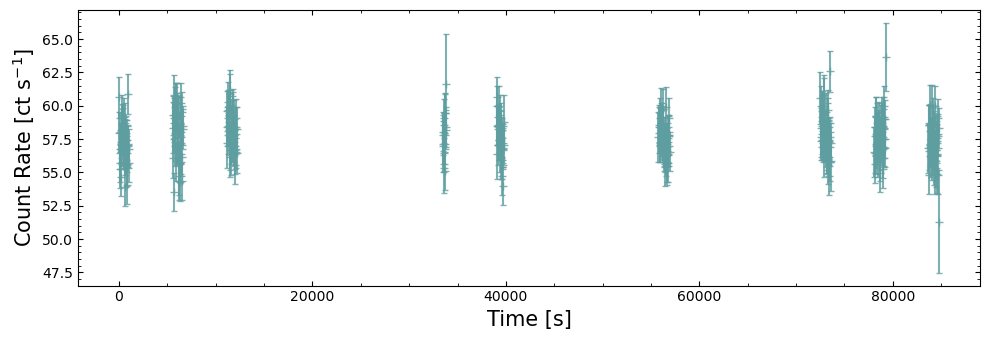

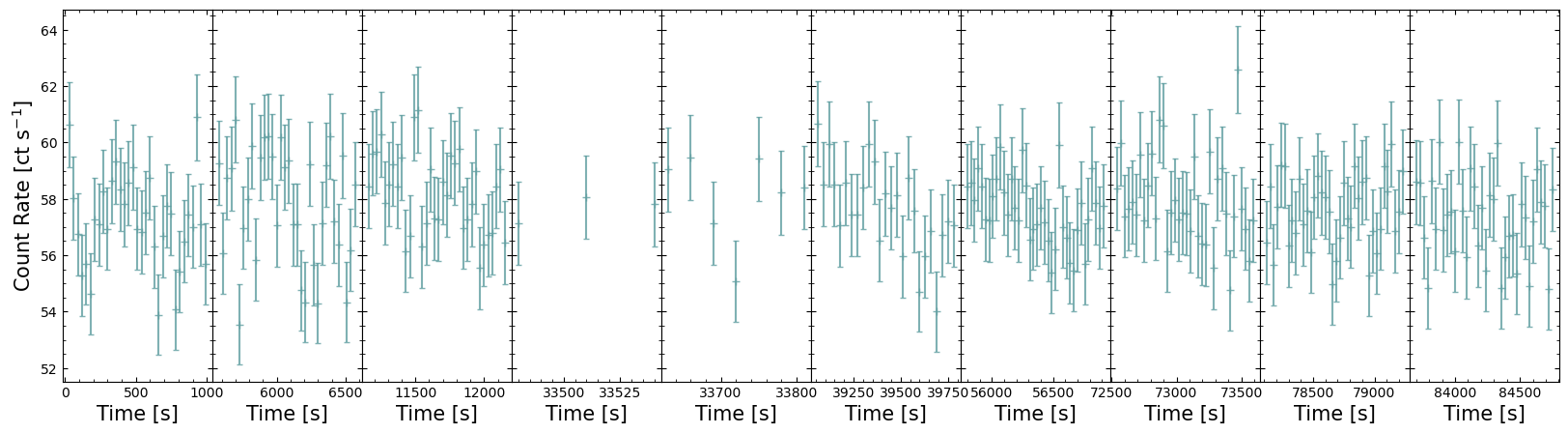

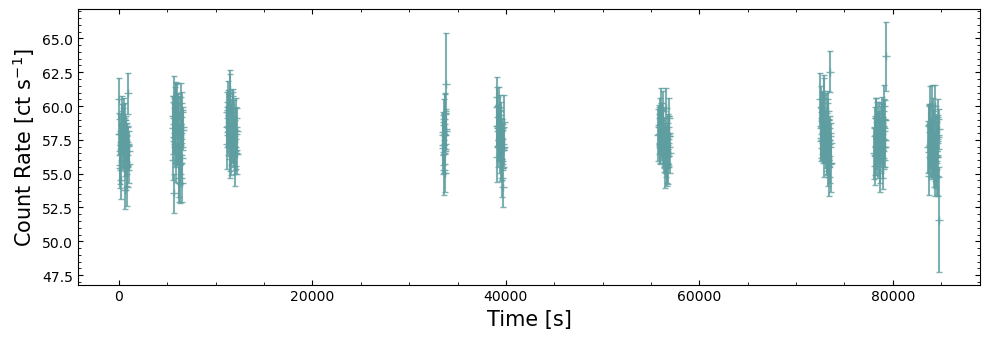

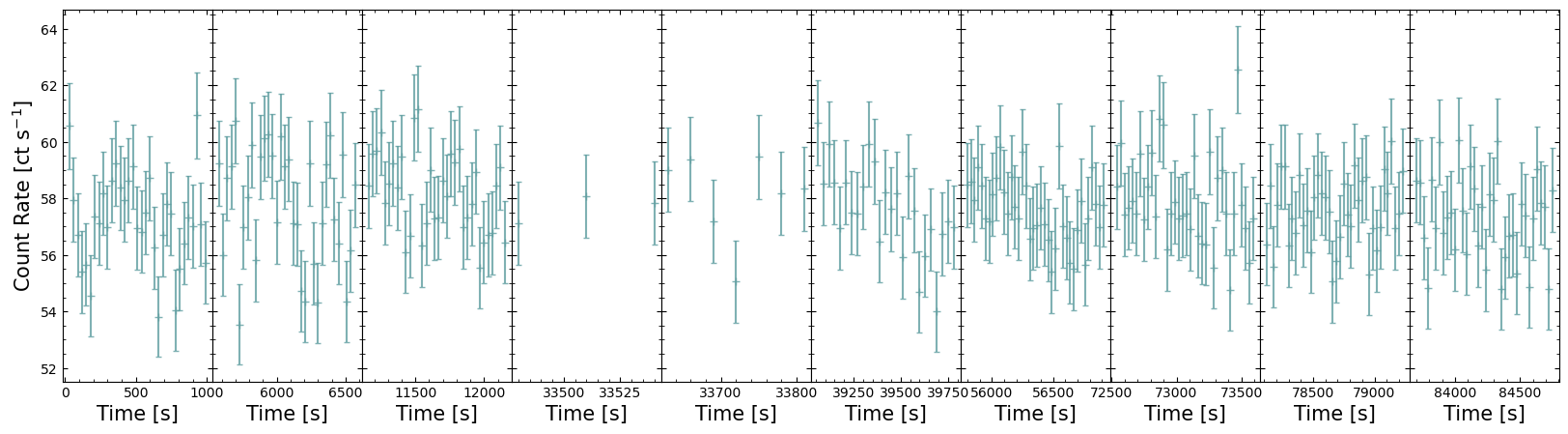

5. Visualization and analysis of freshly-generated data products#

Now we can put our recently extracted spectrum and light curve to use!

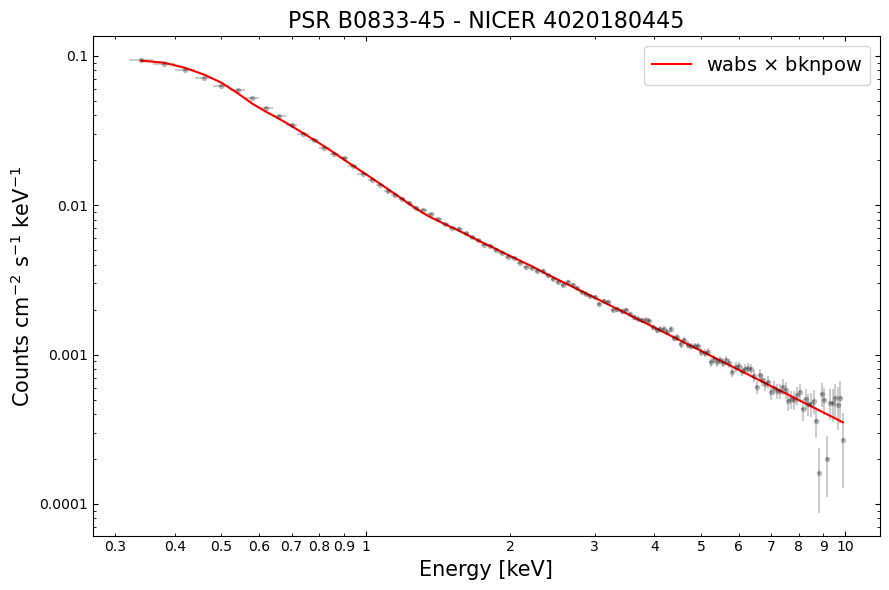

Spectral analysis#

Here we will go through a simple demonstration of how the spectrum we just extracted can be analyzed using PyXspec.

We’re going to use the Python interface to XSPEC (PyXspec) to perform a simple spectral analysis of our NICER spectrum.

Configuring PyXspec#

Here we configure some of PyXspec’s behaviors. We set the verbosity to ‘0’ to suppress printed output, make sure the plot axes are energy (for the x-axis), and normalized counts per second (for the y-axis).

xs.Xset.chatter = 0

# Other xspec settings
xs.Plot.area = True
xs.Plot.xAxis = "keV"
xs.Plot.background = True
xs.Fit.query = "no"

Loading the spectrum#

To load our spectrum into PyXspec, we just have to declare a Spectrum object and point it to the “spec.pha” file we just generated.

with contextlib.chdir(OUT_PATH):
    xs.AllData.clear()
    spec = xs.Spectrum("spec.pha")

We make sure to exclude any channels with energies that fall outside the nominal energy range of NICER’s detectors:

spec.ignore("0.0-0.3, 10.0-**")

Fitting a model to the spectrum#

We’re going to fit a simple model to our spectrum; a galactic-hydrogen-column-absorbed broken powerlaw (meaning it has two different photon indexes, and a transition energy between the two powerlaws they describe).

Once the model is defined, we move straight to performing the fit, rather than setting up any particularly physically motivated start parameters. This is not necessarily something that we recommend for your analysis, but it can be a good way to start exploring your data.

Then we use the Plot instance to set up a plot with normalized counts per second on the y-axis (plotted on a linear scale) - recall that we already set the x-axis to be energy in a previous step.

# Fit a simple absorbed broken powerlaw model
model = xs.Model("wabs*bknpow")
xs.Fit.perform()

# Read out the plotting information for spectrum and model.
xs.Plot("ldata")
# The y-axis values/errors of the observed spectrum (normalized by response)
norm_cnt_rates = xs.Plot.y()
norm_cnt_rates_err = xs.Plot.yErr()

# The energy bins of the observed spectrum
en = xs.Plot.x()
en_cents = xs.Plot.x()
en_widths = xs.Plot.xErr()

# And the model y-values
model = xs.Plot.model()

Examining the fit parameters#

Using the show() method of PyXspec’s AllModels class, we can examine the fitted parameters of the model. As the show method is also affected by our configuration of chatter level, we briefly increase PyXspec’s verbosity in order to see an output.

xs.Xset.chatter = 10
xs.AllModels.show()
xs.Xset.chatter = 0

Creating a $HOME/.xspec directory for you

Parameters defined:
========================================================================
Model wabs<1>*bknpower<2> Source No.: 1   Active/On
Model Model Component  Parameter  Unit     Value
 par  comp
   1    1   wabs       nH         10^22    3.83005E-02  +/-  2.10721E-03
   2    2   bknpower   PhoIndx1            2.40219      +/-  2.67759E-02
   3    2   bknpower   BreakE     keV      1.31037      +/-  1.80388E-02
   4    2   bknpower   PhoIndx2            1.61842      +/-  8.99879E-03
   5    2   bknpower   norm                1.77091E-02  +/-  1.18084E-04
________________________________________________________________________
   1    1   wabs       nH         10^22    3.83005E-02  +/-  2.10721E-03
   2    2   bknpower   PhoIndx1            2.40219      +/-  2.67759E-02
   3    2   bknpower   BreakE     keV      1.31037      +/-  1.80388E-02
   4    2   bknpower   PhoIndx2            1.61842      +/-  8.99879E-03
   5    2   bknpower   norm                1.77091E-02  +/-  1.18084E-04
________________________________________________________________________

Visualizing the fitted spectrum#

As we made sure to extract the data required to plot the spectrum from PyXspec, we can use matplotlib to make a nice visualization - this offers a little more flexibility than using PyXspec directly, but that is also an option!

Hide code cell source


# Plot the spectra
fig = plt.figure(figsize=(9, 6))
plt.minorticks_on()
plt.tick_params(which="both", direction="in", top=True, right=True)

plt.errorbar(
    en_cents,
    norm_cnt_rates,
    xerr=en_widths,
    yerr=norm_cnt_rates_err,
    fmt="k.",
    alpha=0.2,
)
plt.plot(en_cents, model, "r-", label=r"wabs $\times$ bknpow")

plt.title("{n} - NICER {o}".format(n=SRC_NAME, o=OBS_ID), fontsize=16)

plt.yscale("log")
plt.xscale("log")

plt.gca().xaxis.set_minor_formatter(FuncFormatter(lambda inp, _: "{:g}".format(inp)))
plt.gca().xaxis.set_major_formatter(FuncFormatter(lambda inp, _: "{:g}".format(inp)))
plt.gca().yaxis.set_major_formatter(FuncFormatter(lambda inp, _: "{:g}".format(inp)))

plt.xlabel("Energy [keV]", fontsize=15)
plt.ylabel(r"Counts cm$^{-2}$ s$^{-1}$ keV$^{-1}$", fontsize=15)

plt.legend(fontsize=14)
plt.tight_layout()
plt.show()
../../../_images/c9b0edbde177959e535a0515b052b5a8ab7abe99b75e65671b477df270bd636a.png

Making a visualization of the NICER light curve#

We previously generated a light curve for our source from our chosen NICER observation. Now we’re going to read the information in the light curve file into memory, prepare it, and then plot it. This process will highlight the importance of good-time-intervals (GTI) in NICER observations.

For the loading of the light curve file, we’re just going to use the astropy.io.fits module, rather than a specialized tool designed for light curve analysis (such as the Stingray Python module).

The following information will be extracted:

  • TIMEDEL - The timing resolution of the light curve (stored in the header).

  • TIMEZERO - In every case, TIMEZERO must be added to the TIME column to get the true time value (stored in the header).

  • RATE FITS table - The FITS table containing the count rate, time, and fractional exposure information (i.e., light curve data points).

  • GTI FITS table - Another FITS table that defines the good-time-intervals (GTI) for the light curve.

Hint

Given the importance of accurate event timing for many of NICER’s science use cases, there is an article dedicated to explaining the timing system implemented in NICER data products.

Reading the light curve file#

Reading and preparing the light curve file is a simple process, requiring only a few basic steps. Some information is read out of the FITS file header, whereas some are whole FITS tables. Note that we add the TIMEZERO value to the TIME column of the light curve data points, which converts them from a time relative to the beginning of the observation to an absolute timescale.

with fits.open(os.path.join(OUT_PATH, "lc.fits")) as fp:
    # Reading reference values that help define the light curves
    #  timing system from the FITS header
    time_bin = fp["rate"].header["timedel"]
    time_zero = fp["rate"].header["timezero"]

    # Reading out the whole light curve table (contains data to plot the light curve)
    lc_table = Table(fp["rate"].data)
    lc_table["TIME"] += time_zero

    # Getting the good-time-intervals table as well, to help with plotting
    gti_table = Table(fp["gti"].data)

We can briefly examine the contents of the light curve table:

lc_table
Table length=304
TIMERATEERRORFRACEXPNUM_FPM_SEL
float64float32float32float32float32
243475183.057.9803621.5327140.9346.0
243475213.060.6289861.51147961.046.0
243475243.058.0289841.47871541.046.0
243475273.056.7478261.46230091.046.0
243475303.055.2782631.44324251.046.0
243475333.055.6927531.44864341.046.0
243475363.054.637681.43485571.046.0
243475393.057.2753641.4690821.046.0
243475423.057.0869561.46666381.046.0
...............
243559693.057.8029021.47583211.046.0
243559723.057.3507231.47004821.046.0
243559753.054.9014471.43831521.046.0
243559783.057.1999971.46811531.046.0
243559813.059.0463751.49162191.046.0
243559843.057.878261.47679391.046.0
243559873.057.7652171.4753511.046.0
243559903.054.7884061.43683361.046.0
243559933.058.3304331.48255131.046.0
243559963.051.3043483.85627080.1346.0

Showing the whole light curve#

The first way we look at this light curve is to plot every data point as is. This will highlight the importance of GTIs in NICER observations, as well as showing us that a slightly more sophisticated visualization is required to make the resulting figure actually useful.

As NICER is mounted on the ISS, which is in a low and fast orbit around the Earth, it cannot be pointed at one patch of sky for very long. Limited pointing times means that to get a useful exposure on a target, the observation is split into multiple parts, with sizeable time intervals between them. This characteristic is also seen in all sky survey data taken by ROSAT and eROSITA.

Hide code cell source


plt.figure(figsize=(10, 3.5))
plt.minorticks_on()
plt.tick_params(which="both", direction="in", top=True, right=True)

plt.errorbar(
    lc_table["TIME"] - time_zero,
    lc_table["RATE"],
    yerr=lc_table["ERROR"],
    fmt="+",
    capsize=2,
    color="cadetblue",
    alpha=0.8,
)

plt.xlabel("Time [s]", fontsize=15)
plt.ylabel("Count Rate [ct s$^{-1}$]", fontsize=15)

plt.tight_layout()
plt.show()
../../../_images/e107b85b2ae6ca59ea142b79560949186d0552741a83c5da829d97f8b6a25906.png

Showing only the GTIs of the light curve#

The pre-defined GTI table packaged with the light curve tells us which portions of the overall observation time window are valid for our target. Using this, we can extract only those time windows that are relevant to us and thus re-imagine the above figure in a way that is much more useful.

Here we cycle through the GTI tables and double-check that they are fully within the observation time window:

valid_gtis = []
for cur_gti in gti_table:
    gti_check = (lc_table["TIME"] - time_bin / 2 >= cur_gti["START"]) & (
        lc_table["TIME"] + time_bin / 2 <= cur_gti["STOP"]
    )
    if np.any(gti_check):
        valid_gtis.append(gti_check)

Now we can plot only the parts of the observation light curve that are populated with data; there are various ways to present this data, and longer observations with more GTIs become increasingly difficult to visualize effectively.

Our demonstration then is a fairly simple solution, but it is effective for this observation.

Note that when we set up the figure and its subplots, we use the sharey=True argument to make sure each GTI’s data is plotted on the same count-rate scale. We have also reduced horizontal separation between subplots to zero, by calling fig.subplots_adjust(wspace=0) - this cannot be used in combination with plt.tight_layout(), so when saving the figure we pass bbox_inches="tight" to reduce white space around the edges of the plot.

Hide code cell source


num_gti = len(valid_gtis)

fig, ax_arr = plt.subplots(1, num_gti, figsize=(2 * num_gti, 5), sharey=True)
fig.subplots_adjust(wspace=0)

for cur_gti_ind, cur_gti in enumerate(valid_gtis):
    ax = ax_arr[cur_gti_ind]

    cur_lc_tab = lc_table[cur_gti]

    ax.minorticks_on()
    ax.tick_params(which="both", direction="in", top=True, right=True)
    ax.errorbar(
        cur_lc_tab["TIME"] - time_zero,
        cur_lc_tab["RATE"],
        yerr=cur_lc_tab["ERROR"],
        fmt="+",
        capsize=2,
        color="cadetblue",
        alpha=0.8,
    )

    ax.set_xlabel("Time [s]", fontsize=15)

    # We only want to add a y-axis label to the left-most subplot
    if cur_gti_ind == 0:
        ax.set_ylabel("Count Rate [ct s$^{-1}$]", fontsize=15)

# Saving the figure to a PDF
plt.savefig(
    "{n}-nicer-gti-lightcurve.pdf".format(n=SRC_NAME.replace(" ", "")),
    bbox_inches="tight",
)

plt.show()
../../../_images/5cbef4792ec502cc5d38c1213b12561334b93802e97808c5ca8ea82b2d466b49.png

About this notebook#

Author: Mike Corcoran, Associate Research Professor

Author: Abdu Zoghbi, HEASARC Staff Scientist

Author: David Turner, HEASARC Staff Scientist

Updated On: 2026-01-19

Additional Resources#

Support: NICER GOF Helpdesk

Documents:

Acknowledgements#

References#

Contents
